GR6216-16

 。

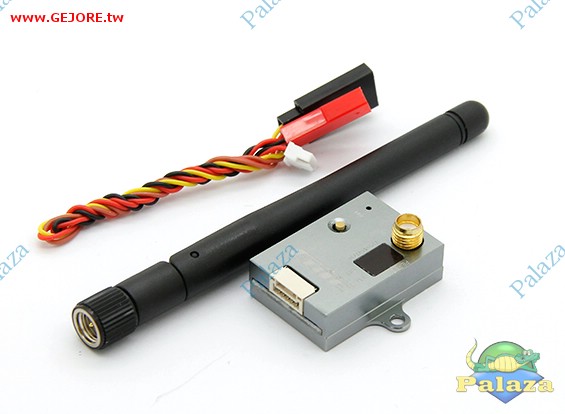

The Quanum Elite X50-6 transmitter packs 600mW of ultra clean 5.8GHz power for your FPV kit! This is a must have Tx for those who are looking for longer range.
The X50 transmits on the full range of 40 channels and has an easy to use channel switching system.
The unit comes in a unique metal alloy case that is not only damage resistant but also acts as a heat sink. 。 The case also has fixing points so that the unit can be bolted to your model making it far more secure.
A key feature of this system is the R Band also known as race band， which is 37mhz apart from the next channel， all 8 sub-channels in R Band will not interfere with each other， this is great news for FPV racers.

Features:
&bull。 Bulit-in microphone
&bull。 Super mini， light weight only 14g
&bull。 Five bands 40 channels with R-Band
&bull。 Elegant design with CNC aluminum case
&bull。 One switching button for band and channel selection
&bull。 Vertical antenna connector

Specs:
Video format: NTSC/PAL
Antenna connector: SMA female connector (Vertical)
Power input: 7-20V (3S LiPo battery suggested)
Power output: 5V
Output impedance: 50 Ohm
Transmitting power: 600mW
Frequency range: 5645-5945Mhz
Working current: 200mA at 12V
Video bandwidth: 8Mhz
Audio carrier frequency: 6.5Mz
Audio input impedance: 10K Ohm
Dimensions: 32x24x9.4mm
Weight: 14 grams

Frequency Range:
FRA: 5740MHz， 5760MHz， 5780MHz， 5800MHz， 5820MHz， 5840MHz， 5860MHz， 5880MHz
FRB: 5705MHz， 5685MHz， 5665MHz， 5645MHz， 5885MHz， 5905MHz， 5925MHz， 5945MHz
FRC: 5865MHz， 5845MHz， 5825MHz， 5805MHz， 5785MHz， 5765MHz， 5745MHz， 5725MHz
FRD: 5658MHz， 5695MHz， 5732MHz， 5769MHz， 5806MHz， 5843MHz， 5880MHz， 5917MHz
FRE: 5733MHz， 5752MHz， 5771MHz， 5790MHz， 5809MHz， 5828MHz， 5847MHz， 5866MHz

Includes:
Quanum Elite X50-2 。 5.8GHz 40CH 200mW Wireless AV Transmitter
Antenna
Cable
Manual
